PGA116AIPWR IC OPAMP PGA 1 CIRCUIT 20TSSOP Texas Instruments

Name: PGA116AIPWR IC OPAMP PGA 1 CIRCUIT 20TSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : PGA116AIPWR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Programmable Gain

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 8V/µs

Gain Bandwidth Product : -

-3db Bandwidth : 10 MHz

Current - Input Bias : 1.5 nA

Voltage - Input Offset : 75 µV

Current - Supply : 330µA

Current - Output / Channel : 60 mA

Voltage - Supply Span (Min) : 2.2 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 20-TSSOP (0.173", 4.40mm Width)

Supplier Device Package : 20-TSSOP

Contact Now

Product Details

The Texas Instruments PGA116AIPWR Instrumentation Amplifier is an ideal solution for high performance, low-noise signal conditioning. It is a PGA (programmable gain amplifier) that offers 10 channels and high-resolution signal processing in a single component. With a maximum gain of 106.02 dB and low noise of 100 μV, this device provides a high signal-to-noise ratio and low distortion. It is offered in a TSSOP-20 surface mount package and is capable of operation over the temperature range of -40 °C to +125 °C. The PGA116AIPWR offers numerous features such as low power consumption, built-in open circuit detection, and high output impedance. This device is well suited for applications such as signal conditioning, industrial & medical instrumentation, and audio systems.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	PGA116
Product	Special Purpose Amplifiers
Packaging	Reel
Unit-Weight	0.002716 oz
Mounting-Style	SMD/SMT
Input-Type	Rail to Rail
Number-of-Channels	10 Channel
Amplifier-Type	PGA
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	1 mA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.2 V
Package-Case	TSSOP-20
Ib-Input-Bias-Current	5 nA
Vos-Input-Offset-Voltage	100 uV
PSRR-Power-Supply-Rejection-Ratio	106.02 dB
Vcm-Common-Mode-Voltage	GND + 0.1 V to AVdd - 0.1 V
SR-Slew-Rate	3 V/us
en-Input-Voltage-Noise-Density	13 nV/sqrt Hz
Gain-Error	0.1 %
Gain-V-V	1 V/V 2 V/V 4 V/V 8 V/V 16 V/V 32 V/V 64 V/V 128 V/V
Maximum-Input-Resistance	10000 MOhms (Typ)

Descriptions

Programmable Gain Amplifier 1 Circuit Rail-to-Rail 20-TSSOP

SP Amp Variable Gain Amp Single R-R I/O 5.5V 20-Pin TSSOP T/R

Special Purpose Amplifiers Zero-Drift Program Gain AMP/MUX

Best PGA116AIPWR IC OPAMP PGA 1 CIRCUIT 20TSSOP Texas Instruments wholesale

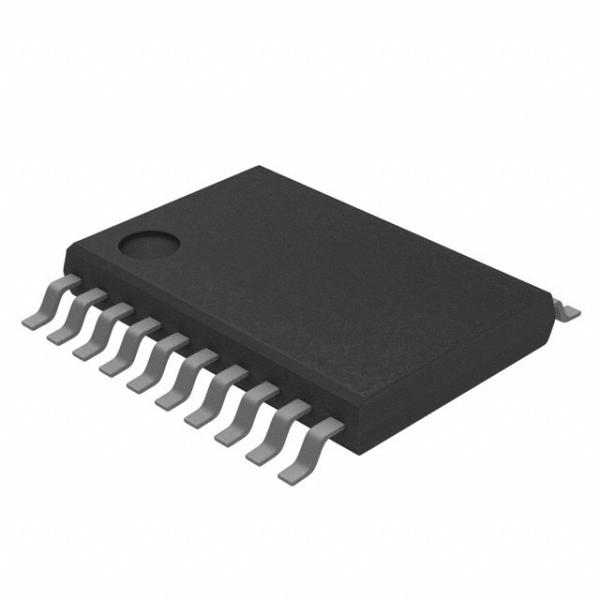

PGA116AIPWR IC OPAMP PGA 1 CIRCUIT 20TSSOP Texas Instruments Images
